Reverse Phase Dimming

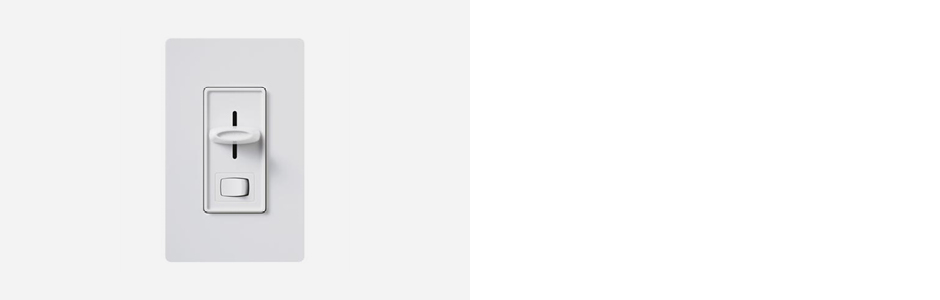

reverse phase dimmer switch
Typically used for electronic low-voltage (ELV) light sources such as halogen and incandescent in the recent past, reverse phase dimming control tends to be more compatible with LED drivers than forward phase dimming in some cases. Similar to forward-phase dimming, reverse-phase is line voltage dimming, and therefore the wiring needed is often already in place for retrofit applications. All USAI ELV dimming options are for use with 120V only. A typical reverse phase wiring diagram is shown below:

2 wire phase dimming diagram

USAI LIGHTING REVERSE PHASE DIMMING SOLUTIONS

DIML10: Our standard reverse-phase dimming driver option dims down to 15% at minimum light level. It is for use with 120V only.
