DALI Dimming

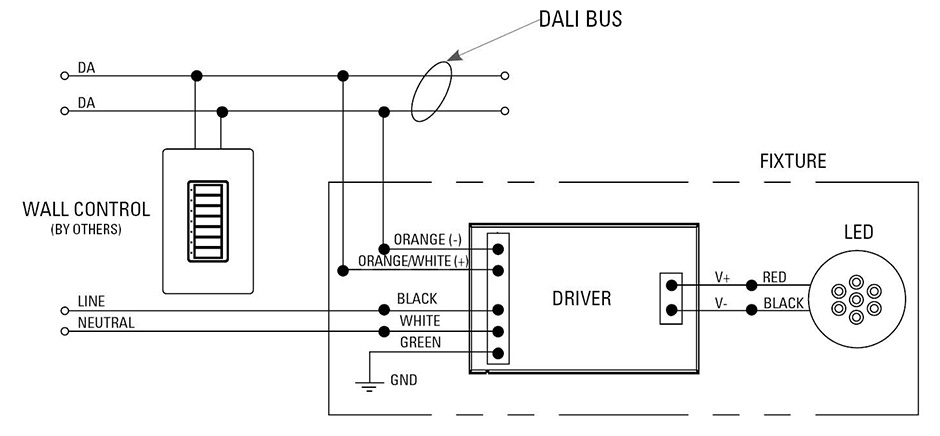

The Digitally Addressable Lighting Interface (DALI) originated in Europe and has been heavily implemented for many years in that part of the world. It is now becoming more popular in the United States as well. The DALI standard allows for digital control of individual fixtures via a low voltage communication protocol that can send information to light fixtures while also receiving information from the fixtures, making this a useful tool for building information monitoring systems and controls integration. DALI allows for addressing of individual fixtures, with up to 64 addresses possible organized into 16 different control zones. DALI communication is not polarity sensitive and a variety of connection configurations are possible with this protocol. A typical DALI wiring diagram is shown below:

DALI dimming diagram

USAI LIGHTING DALI DIMMING SOLUTIONS

DIML7: Our EldoLED DALI dimming driver option dims down to 0.1% at minimum light level. It is available with a wide range of USAI lighting fixtures.

Related Products

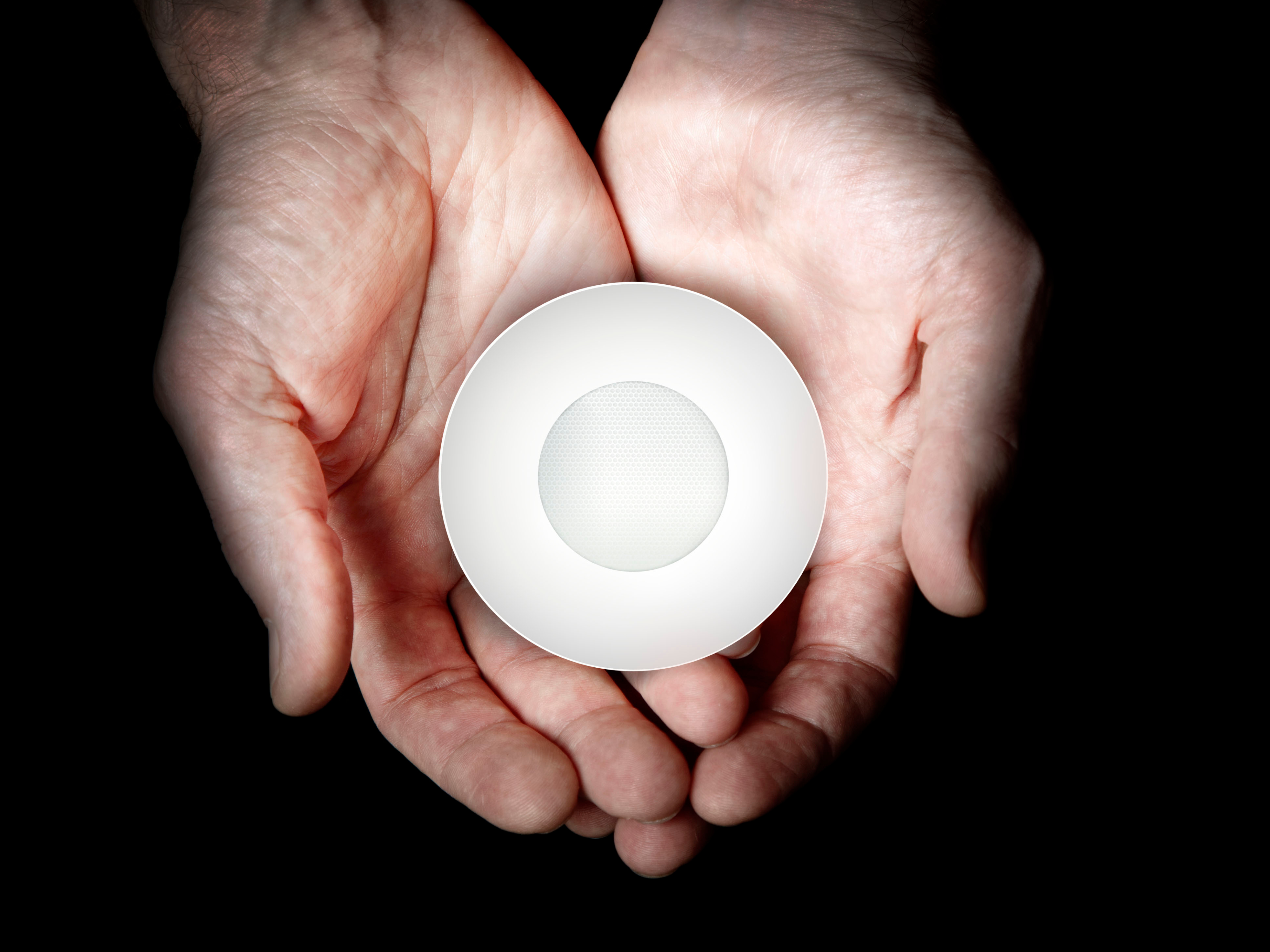

BeveLED Mini 3"

BeveLED Mini 3"

Our iconic BeveLED trim in a small yet powerful 3" aperture family.

Aperture Size: 3″, 3.5″

Wattage: 9W – 24W

Source Lumens: 925lm – 3000lm

Delivered Lumens: 500lm – 2500lm

Beamspread: 6° – 70°

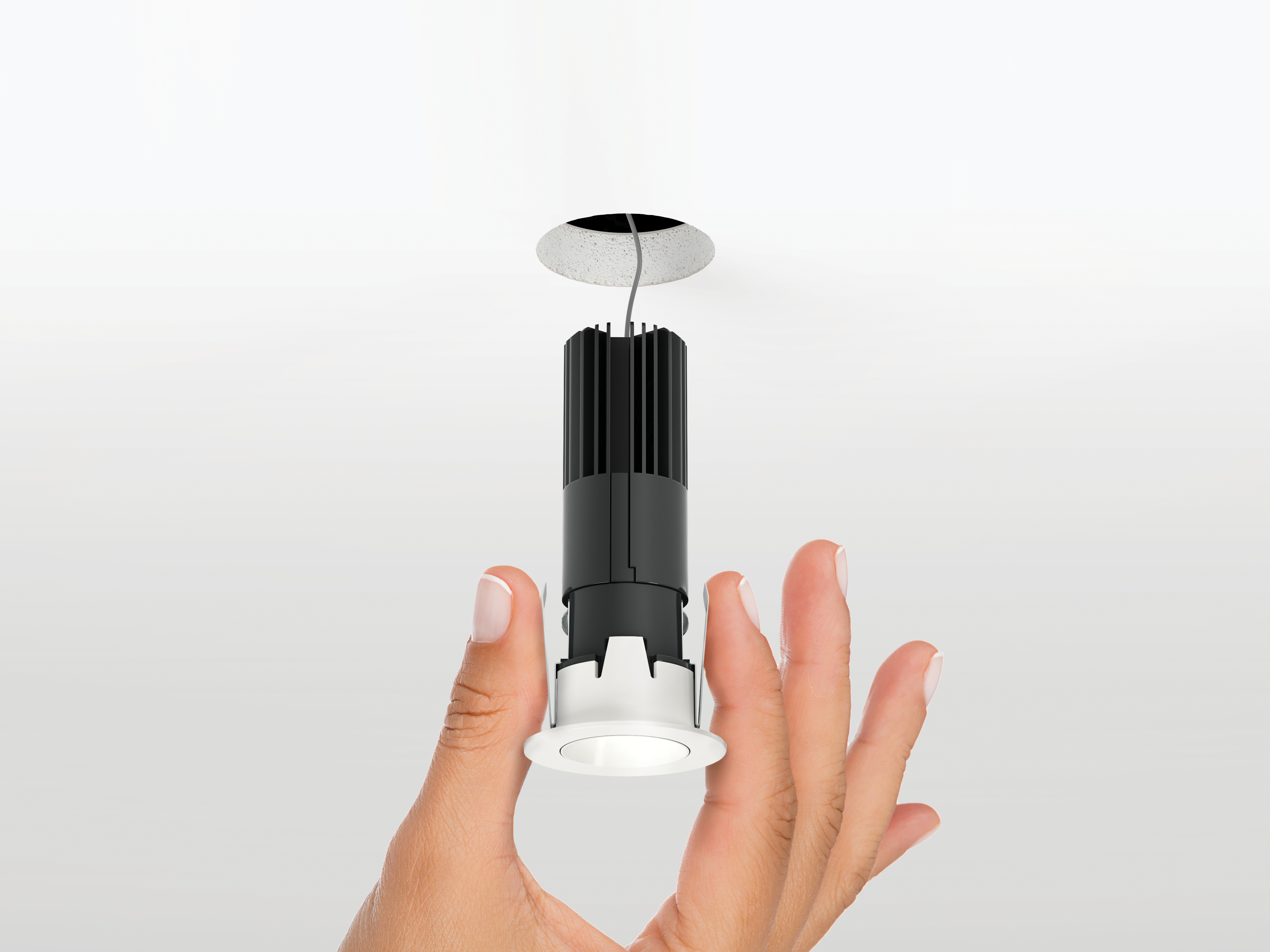

the LittleOnes 1"

the LittleOnes 1"

Who says TINY comes at the expense of performance? Meet USAI’s 1 inch aperture family.

Aperture Size: 1″, 1.25″

Wattage: 7W – 18W

Source Lumens: 525lm – 2000lm

Delivered Lumens: 275lm – 1600lm

Beamspread: 25° – 50°

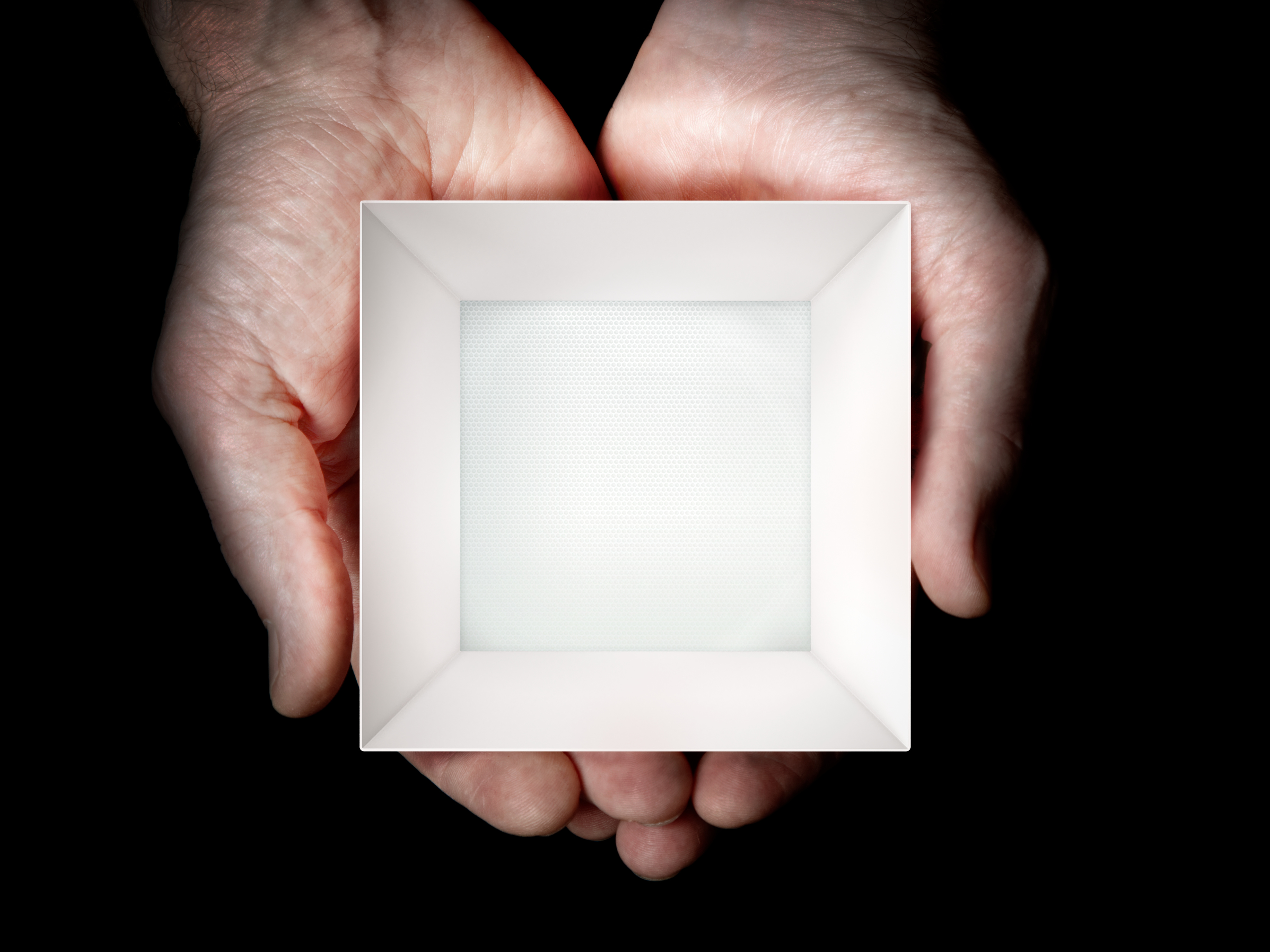

BeveLED 2.2 4.5"

BeveLED 2.2 4.5"

Industry-leading performance in the most complete recessed LED product family available.

Aperture Size: 4.5″, 6″

Wattage: 9W – 45W

Source Lumens: 1150lm – 5350lm

Delivered Lumens: 775lm – 4675lm

Beamspread: 10° – 90°

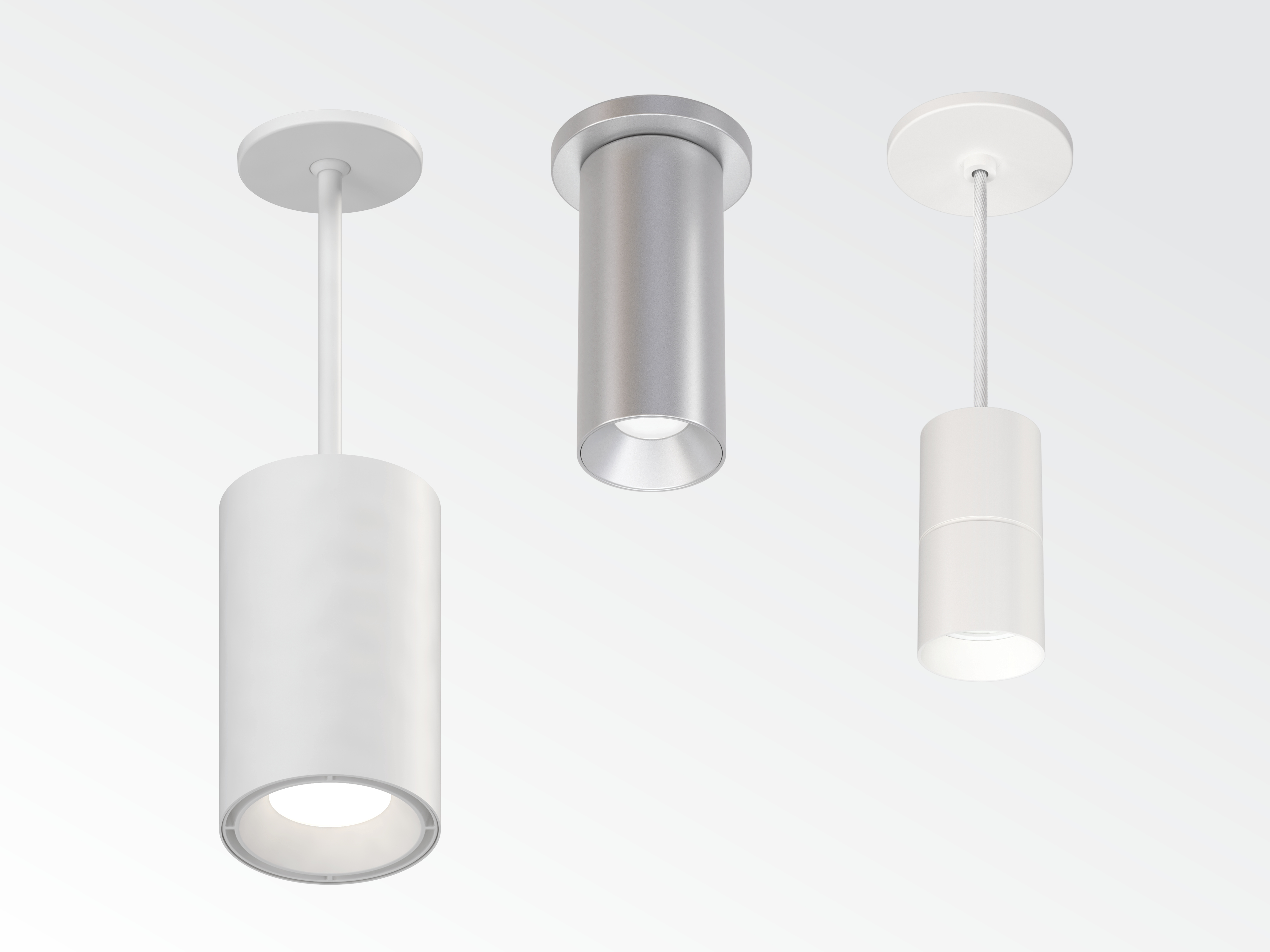

Pendants + Surface 2" - 6"

Pendants + Surface 2" – 6"

Power and beauty are both in play with our sleek architectural cylinders.

Aperture Size: 1.25″, 2″, 3″, 3.5″, 5″, 6″

Wattage: 7W – 41W

Source Lumens: 800lm – 3775lm

Delivered Lumens: 425lm – 3000lm

Beamspread: 10° – 90°

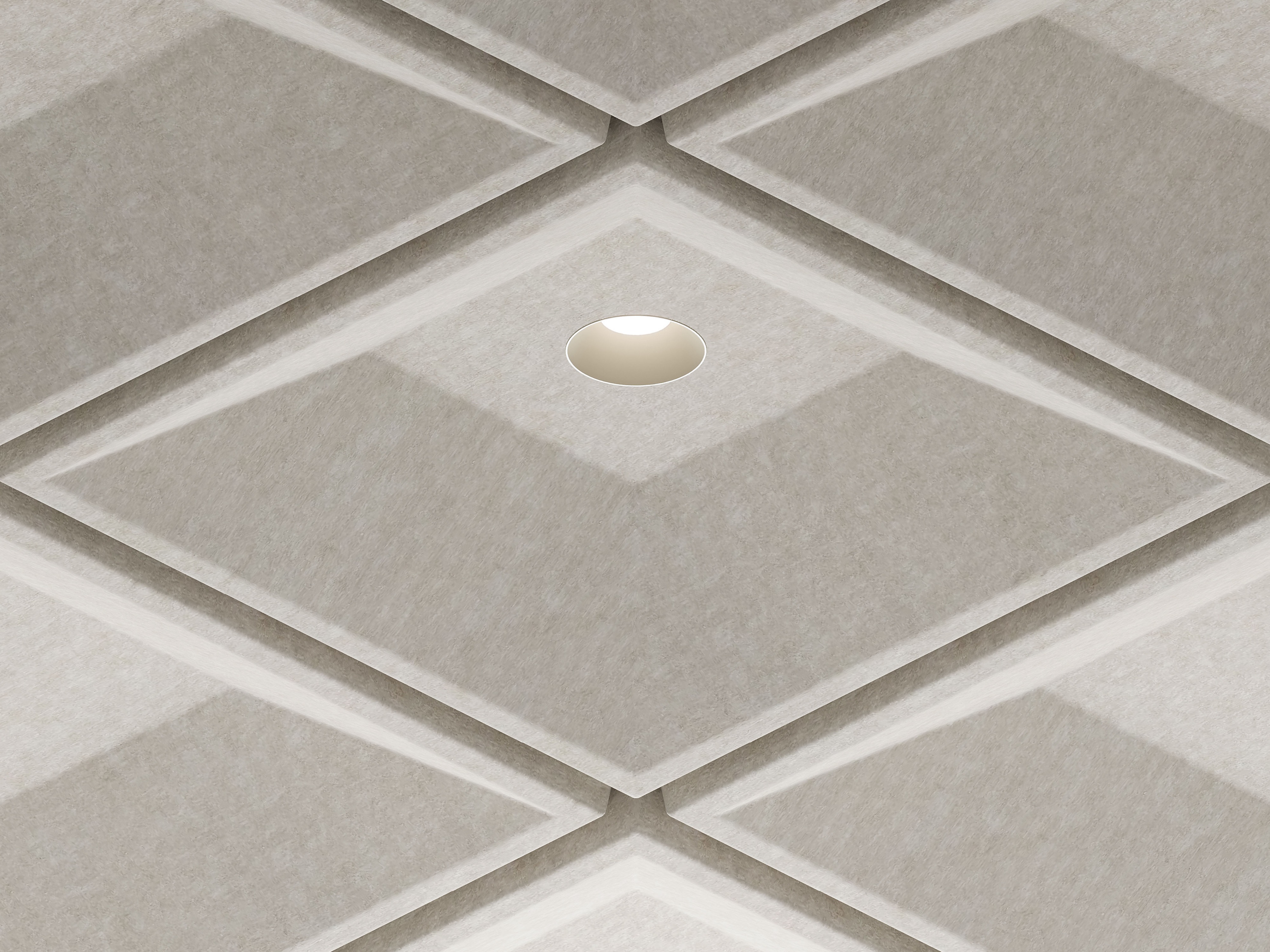

Integrated Ceilings

Integrated Ceilings

Solutions designed for a perfect fit with the most popular architectural ceiling systems.

Aperture Size: 1.25″, 3″, 4.5″

Wattage: 8W – 45W

Source Lumens: 750lm – 5350lm

Delivered Lumens: 500lm – 4675lm

Beamspread: 6° – 90°

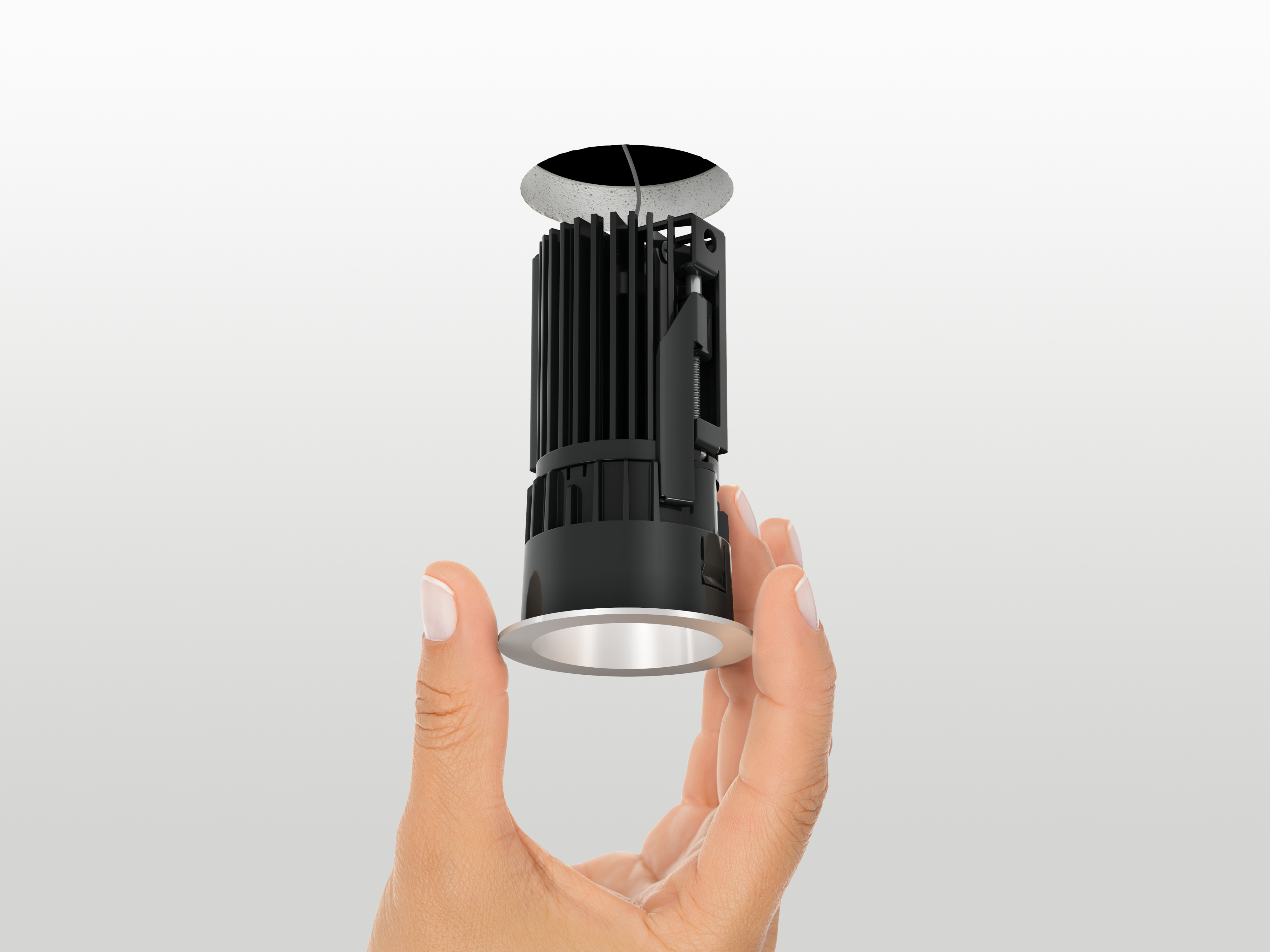

the LittleTwos 2"

the LittleTwos 2"

A new high-performance family of 2" recessed downlights and cylinders.

Aperture Size: 2″

Wattage: 7W – 20W

Source Lumens: 800lm – 2600lm

Delivered Lumens: 400lm – 1875lm

Beamspread: 10° – 75°

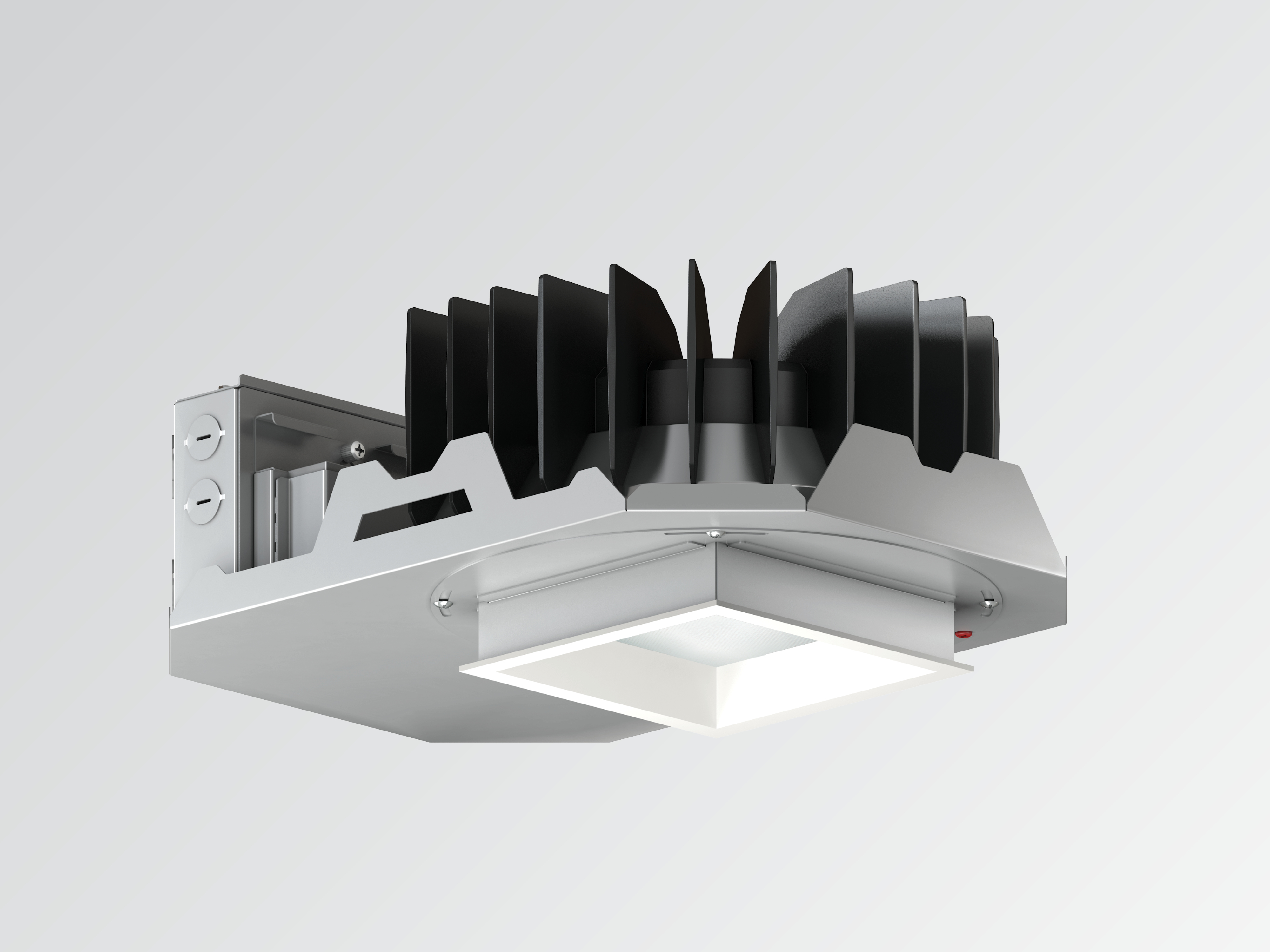

Max Output 6"

LED performance and maximum intensity reach unprecedented levels.

Aperture Size: 6″

Wattage: 40W – 80W

Source Lumens: 3875lm – 7600lm

Delivered Lumens: 3400lm – 6125lm

Beamspread: 10° – 90°

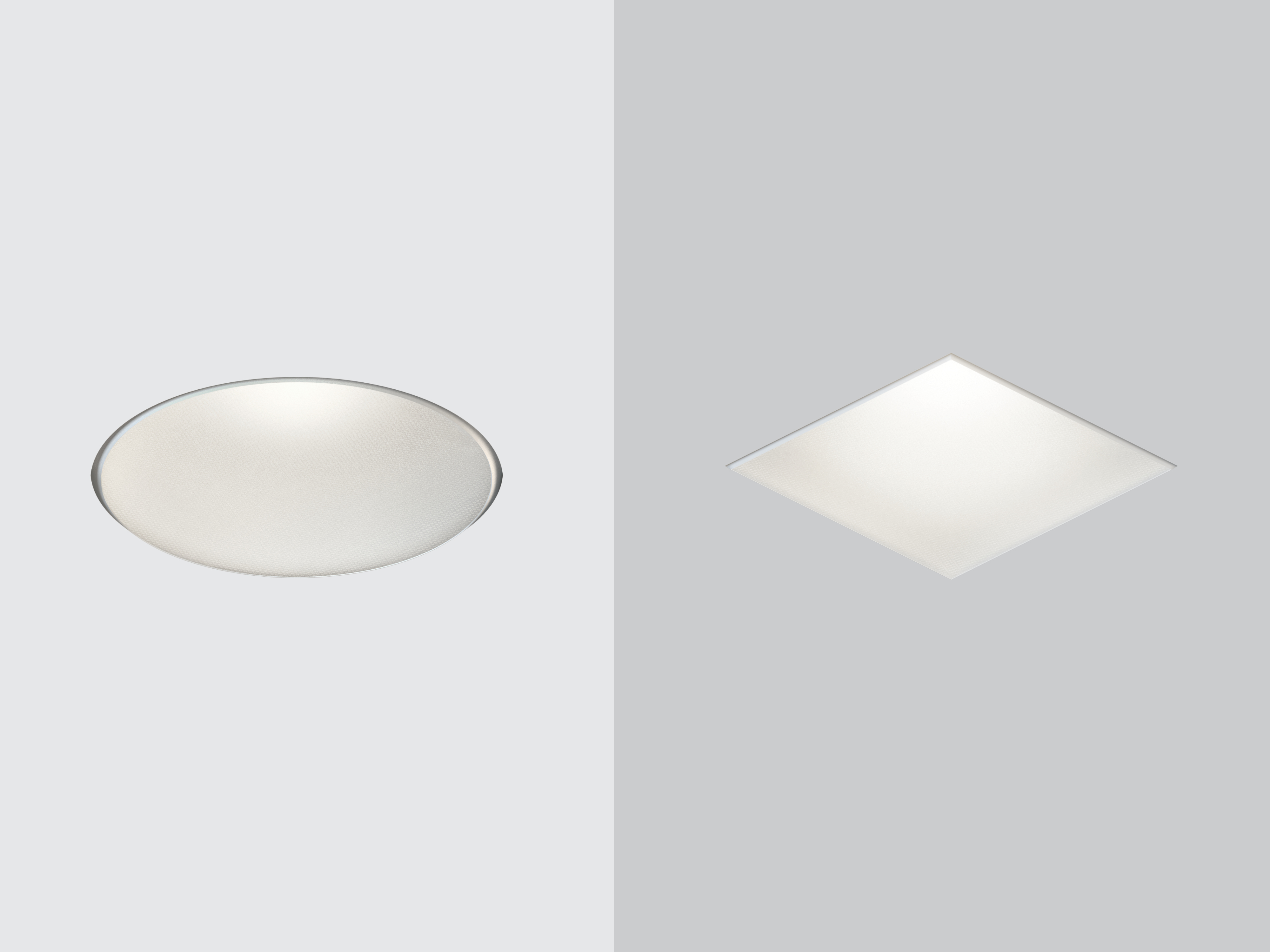

TrueZero 360 3"

TrueZero 360 3"

Zero regress flush glass trim lighting fixtures that integrate seamlessly with the ceiling plane.

Aperture Size: 3″

Wattage: 9W – 29W

Source Lumens: 925lm – 3475lm

Delivered Lumens: 650lm – 2575lm

Beamspread: 25° – 65°

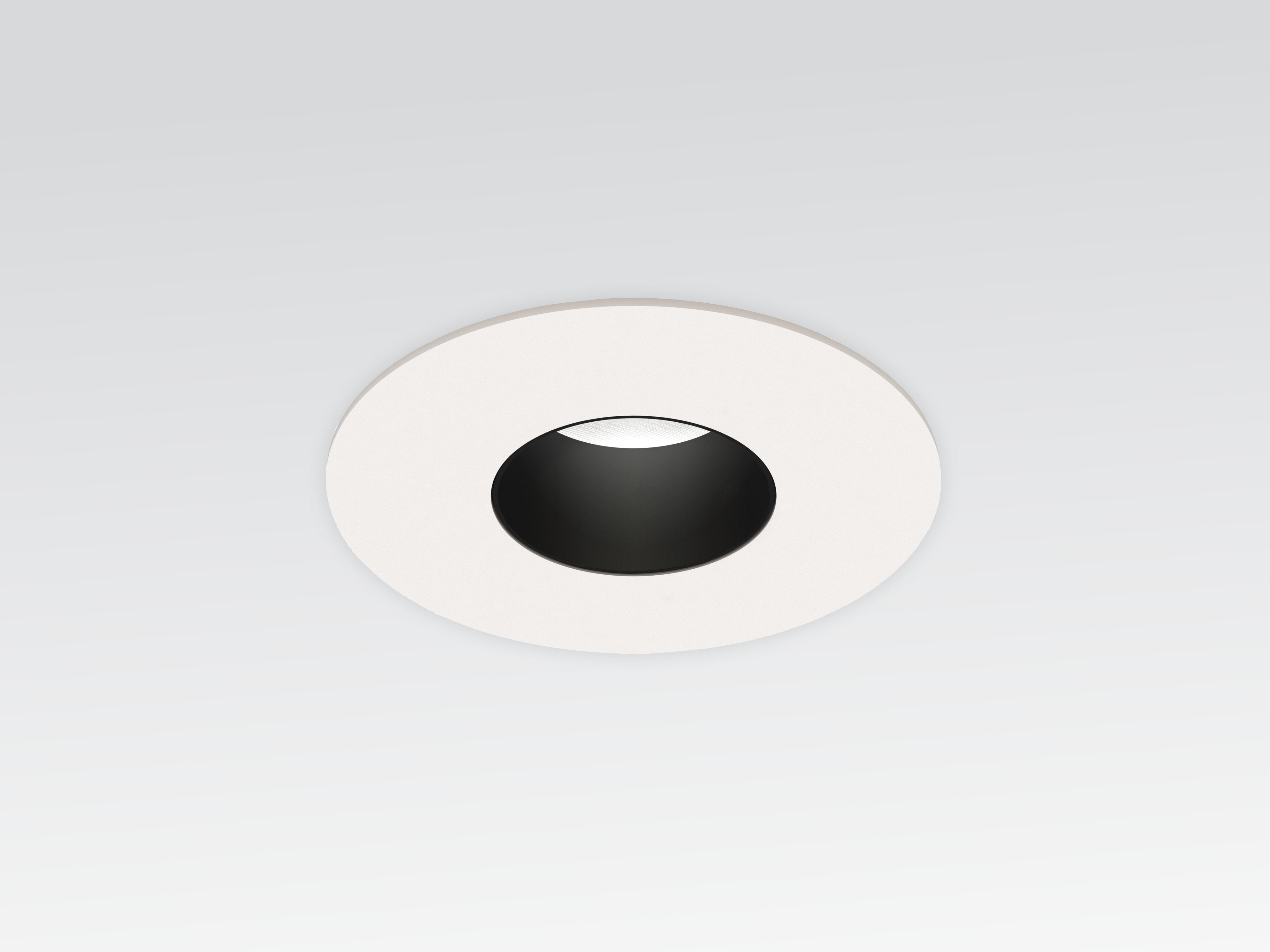

SliverLED 1.75"

SliverLED 1.75"

Minimal pinhole trims and housings for the sleekest and tightest spaces.

Aperture Size: 1.75″

Wattage: 9W – 15W

Source Lumens: 1075lm – 1575lm

Delivered Lumens: 475lm – 1400lm

Beamspread: 25° – 50°

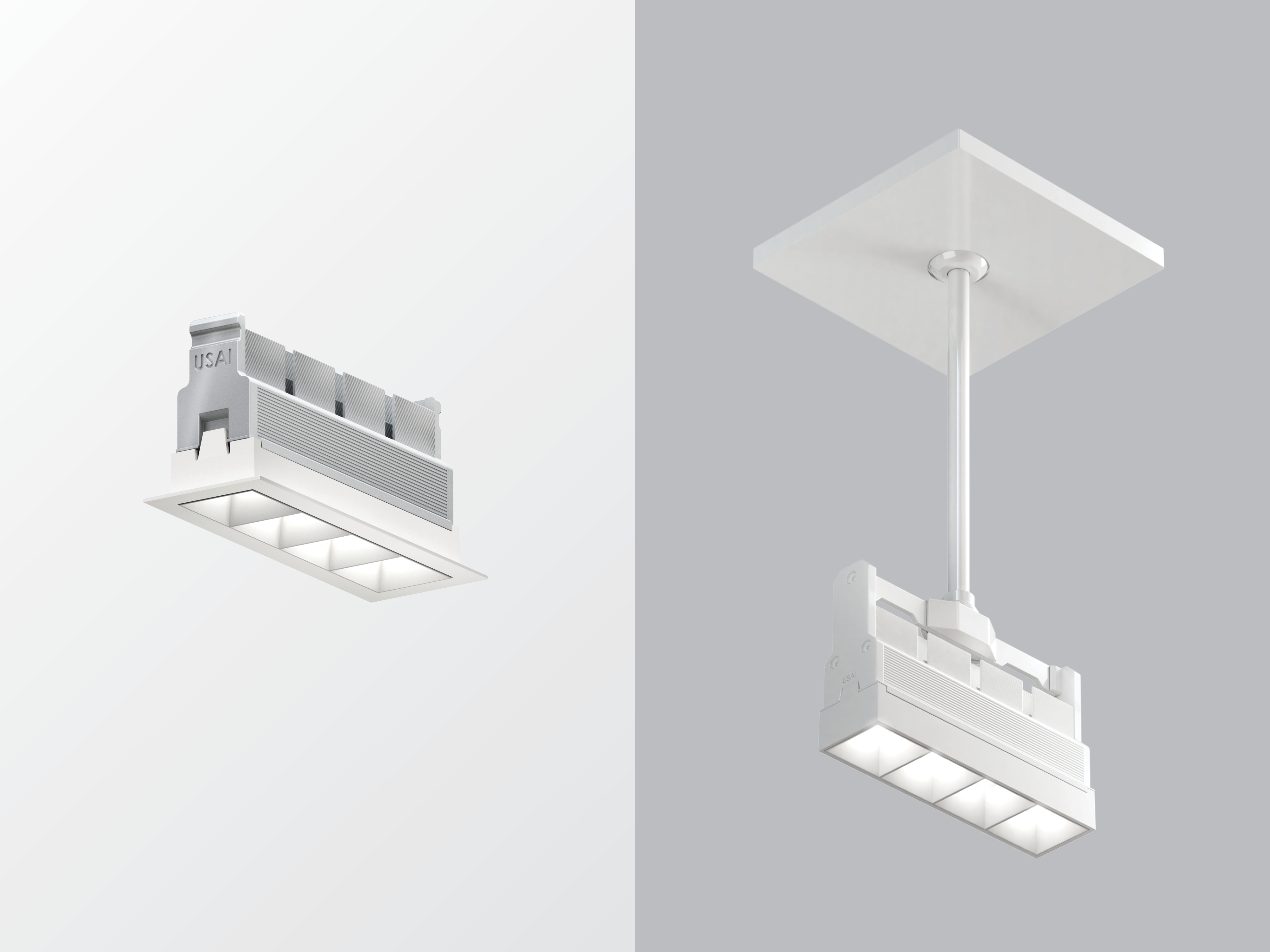

Micro Multi-Cell

Micro Multi-Cell

Our smallest LED downlight which artistically blends technology and sleek design.

Aperture Size: 1.25″

Wattage: 8W – 41W

Source Lumens: 750lm – 4675lm

Delivered Lumens: 500lm – 3125lm

Beamspread: 30° – 50°

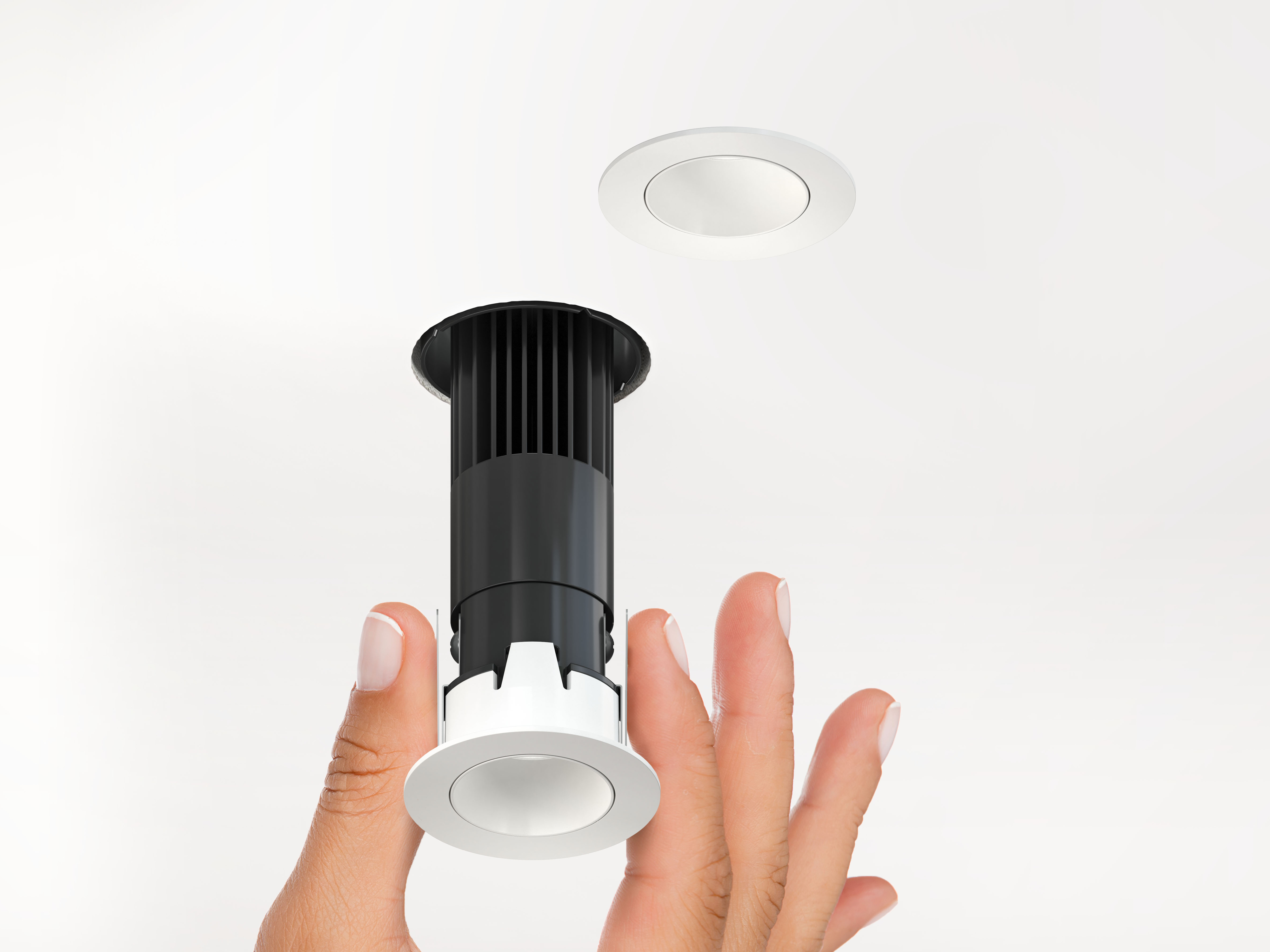

Multiples

Multihead adjustables for maximum flexibility and unlimited applications.

Aperture Size: 1.25″, 2″, 4.5″

Wattage: 7W – 33W

Source Lumens: 525lm – 3025lm

Delivered Lumens: 250lm – 2750lm

Beamspread: 10° – 85°

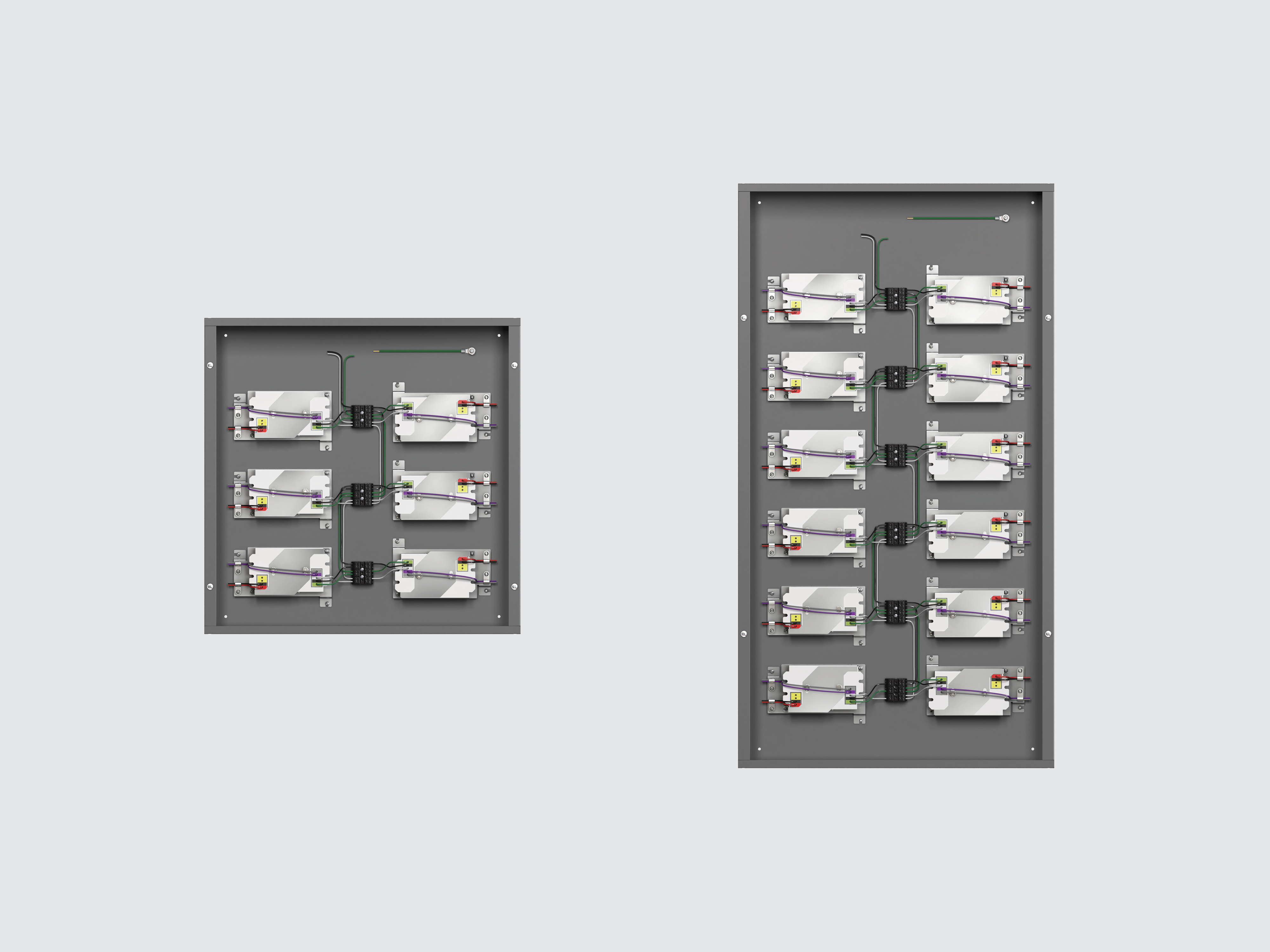

Power Units

Power units by USAI, for speed and efficiency on site.
