Lutron EcoSystem

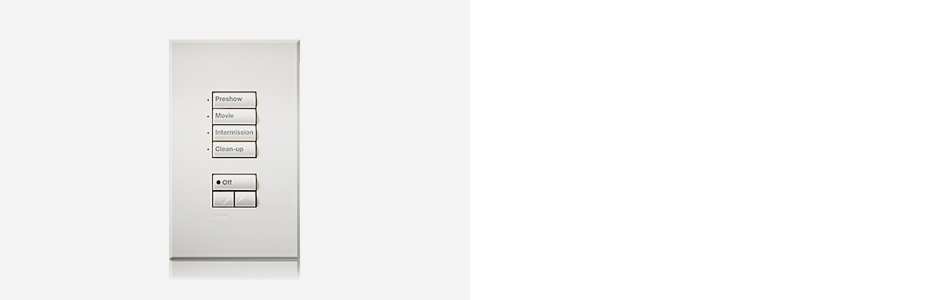

lutron ecosystem dimming control

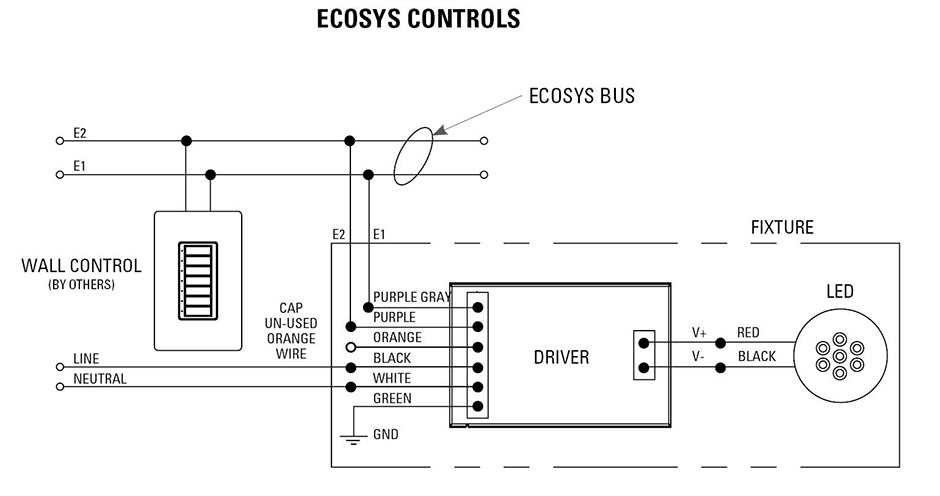

Lutron EcoSystem is based on the DALI communication standard but uses a proprietary dimming protocol which ensures that Lutron dimming drivers will pair well with Lutron dimmers and control systems. This Lutron dimming system allows for individual control of fixtures similar to DALI, and utilizes a “hot” dimming wire and is therefore less susceptible to electrical noise than forward-phase and reverse-phase 2-wire dimming systems. However, the installation is slightly more complicated and less common. A typical Lutron EcoSystem wiring diagram is shown below:

lutron ecosys wiring diagram

USAI LIGHTING LUTRON ECOSYSTEM DIMMING SOLUTIONS



DIML4: Our Lutron Hi-Lume 3-wire / EcoSystem dimming driver option dims down to 1% at minimum light level. It is available with a wide range of USAI lighting fixtures.
