DMX Dimming

DMX dimming wiring diagram

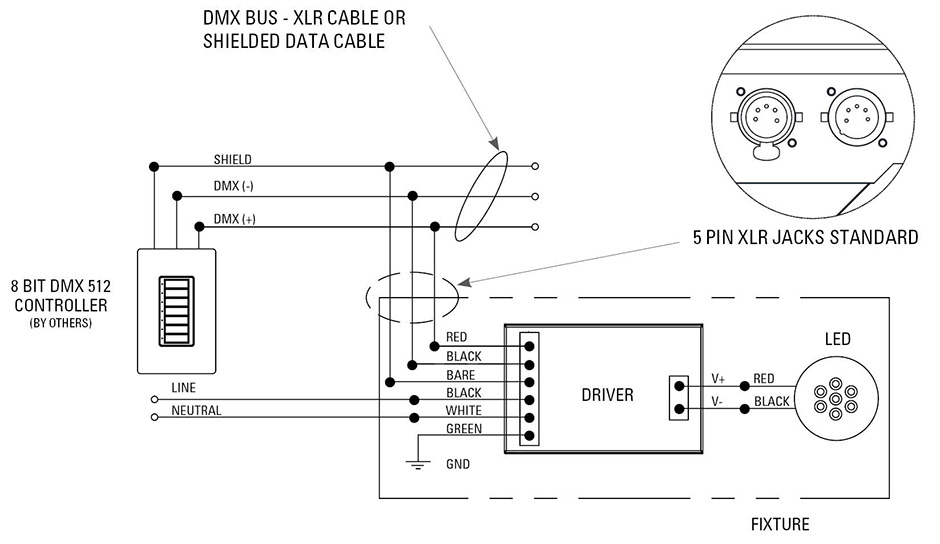

The Digital Multiplexing communication protocol has typically been implemented in theatrical applications, where its versatile control capabilities have proven indispensable in the world of moving and color-changing lights. Like DALI, the DMX standard allows for digital control of individual fixtures via a low voltage communication protocol, but allows for a larger range of digital addresses per DMX “universe” (512 unique addresses for DMX versus 64 for DALI). Unlike DALI, DMX data signals are polarized and the fixture-to-fixture connections must always be daisy-chained. A typical DMX wiring diagram is shown below:

USAI LIGHTING DMX DIMMING SOLUTIONS

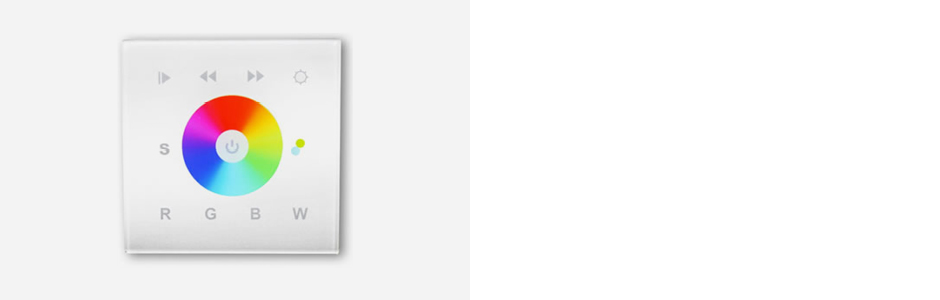

DIML8: Our EldoLED DMX dimming driver option dims down to 0.1% at minimum light level. It is available with a wide range of USAI lighting fixtures.
